Brief description:

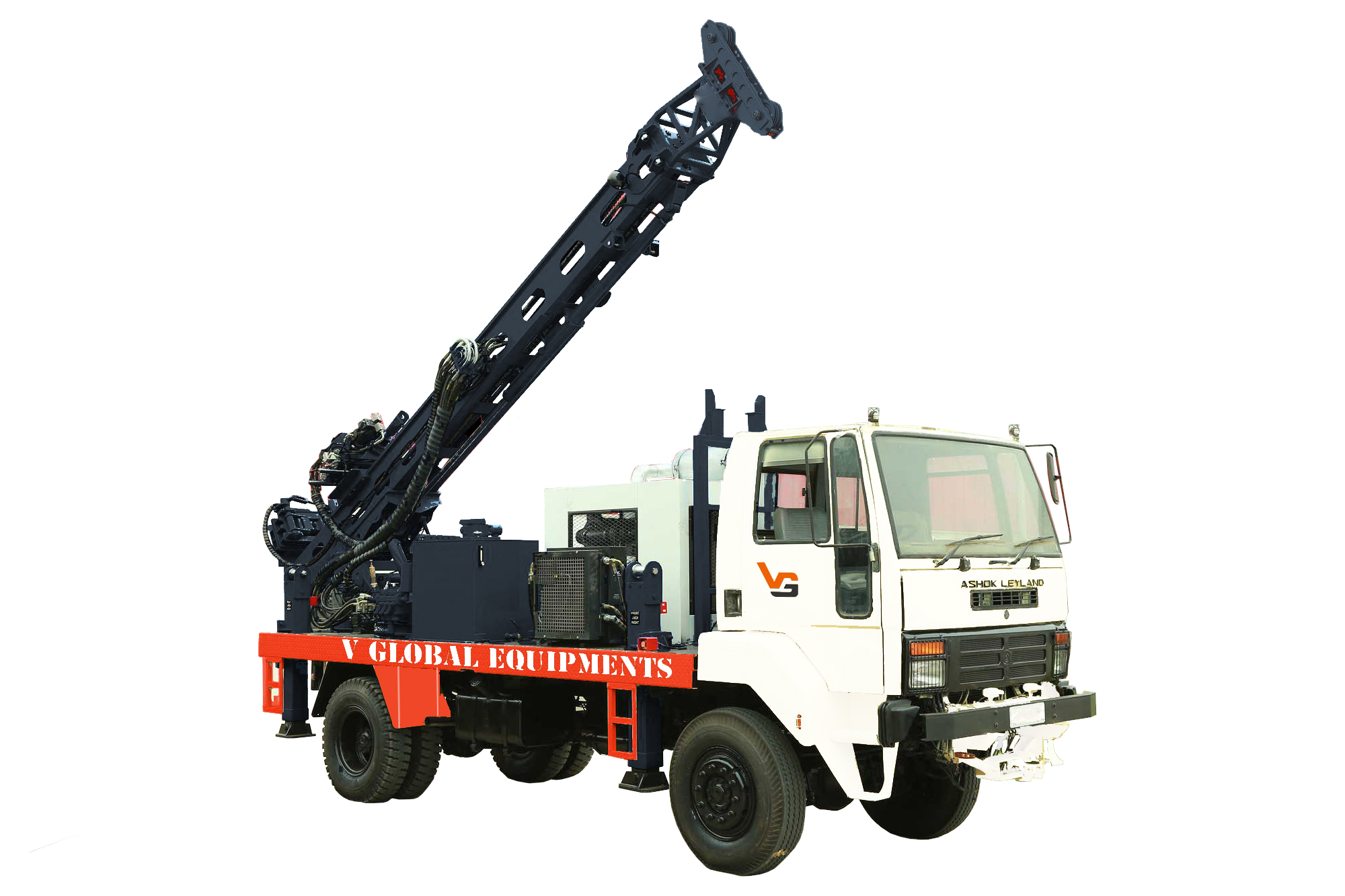

Down The Hole (DTH) drill rig capable of drilling to a depth of 150mtrs (500 ft) under favorable drilling condition. The drill rig can be operated on rocky formation and hard to medium soil formation. The drill rig can make a hole of diameter 4 ½’’ to 6’’.

Description Specification
Application water well
capacity Dia 4 ½” – 6’’ / upto:150 Meters Depth
pull up load 7300 Kgf
Pull Down 4300 Kgf
Torque 2800 Nm
Mounting of Rig 4x2 Truck
Water Injection Pump 56 Lpm @ 30 Bar
Power Separate on board Engine
Compressor 600 Cfm @ 200 Psi
